Description
MAIN FEATURES
The water quality monitoring stations consist of a data acquisition datalogger and a multiparametric probe that allows you to measure the following chemical-physical and water quality parameters: Temperature, Conductivity, pH, Redox, Dissolved Oxygen, Turbidity e Hydrometric level.
Each measuring station can be configured as:
- fixed monitoring system with the MicroMET3 Geoves datalogger with SD Card storage system and remote data transmission
- portable monitoring system with the Geoves MicroHYD1 datalogger with SD Card storage system
The following types of multiparameter probes can be connected to each data logger:
- Multiparametric probe mod. SM6 or SM7 with 70mm diameter suitable for wells ø> 3 ": in this version up to 7 parameters can be measured, namely pH, Temperature, Conductivity, Hydrometric level, Redox, Dissolved Oxygen (option: turbidity)
- Probe in the "micro" version mod. mSM4 or mSM5 with 42mm diameter suitable for 2 ”wells: in this version it is possible to mount up to 5 electrodes or pH, Temperature, Conductivity, Hydrometric level (option: Redox).
The following options are also available:
- Measurement of dissolved oxygen with an optical sensor (replacing the one normally mounted with a polarographic cell). This solution is particularly suitable for murky and sea waters
- Measurement of turbidity

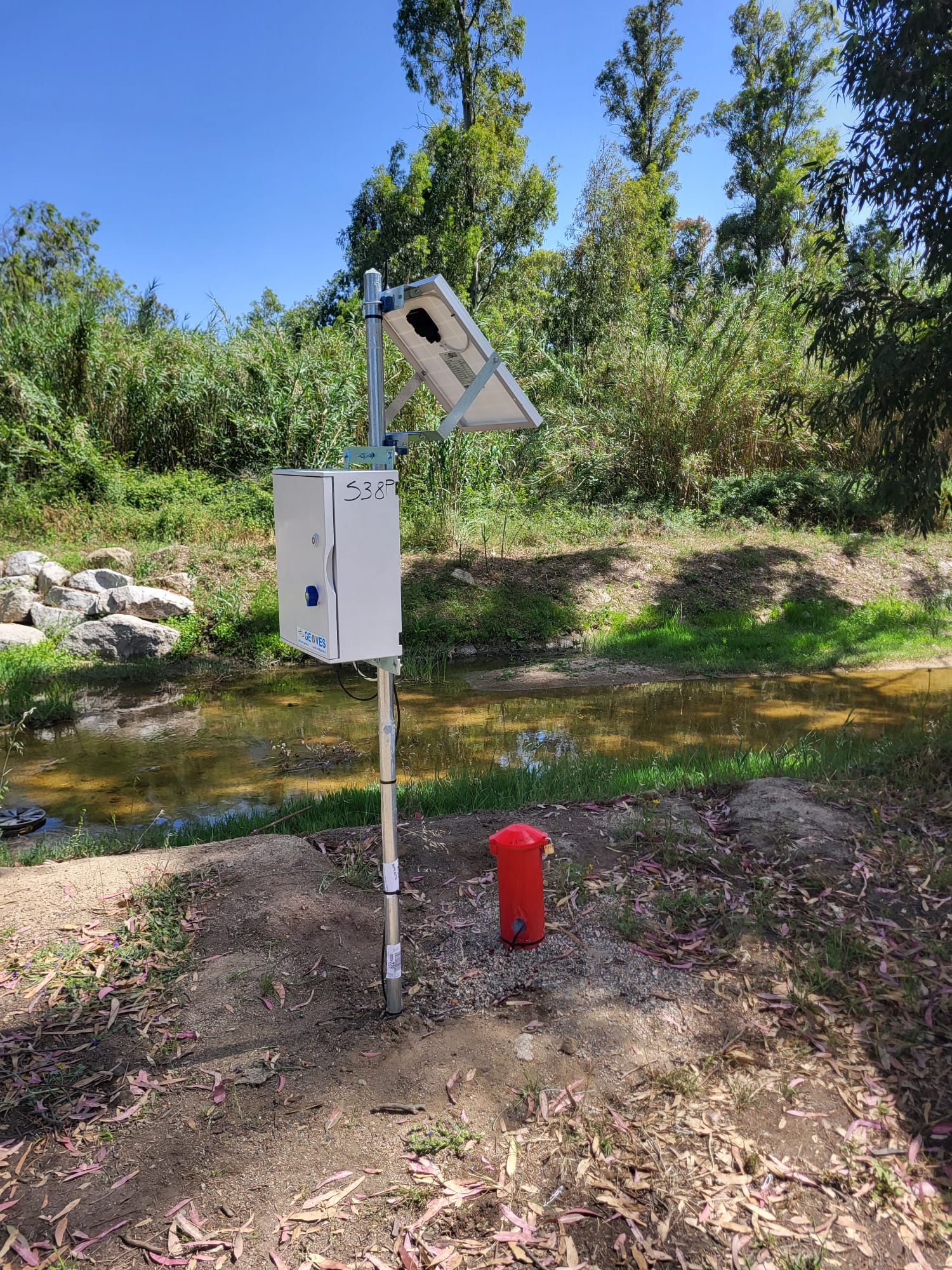

ADVANTAGES OF FIX STATION with MicroMET3
- Low consumption and power supply from photovoltaic panel
- Wireless data transmission via GPRS (or via cable on request)
- Installation without the need for electrical connections
- Excellent surge protection
- Ease of assembly and reduced intervention times
- Excellent measurement accuracy
ADVANTAGES OF PORTABLE STATION with MicroHYD1
- Powered by rechargeable AA batteries
- High operating autonomy even for continuous monitoring
- Data storage on SD Card and data in standard TXT format
- Well profiling function
- Excellent measurement accuracy and ease of use
Specifications
DATALOGGERS
| Models |

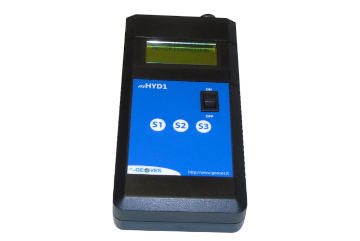

MicroHyd1
Handheld datalogger for portable applications
|
MicroMet3
Datalogger for fixed applications
|
| Functions |
Programmable storage 5-10-15-30-60'
Storage of instantaneous measures on command (e.g. for parameter profiling at various depths)
Visualization of instantaneous data on the display
Indication of residual energy% batteries
Date and time programming
|
Programmable storage 5-10-15-30-60'
Programmable transmission 5-10-15-30-60'
Visualization of instantaneous data on the display
Date and time programming
Automatic test for GPRS field verification and correct antenna orientation |
| Power |
n.4 rechargeable batteries typ. Ni-MH AA.R6 1.2V/2850mA
Supplied accessories: Batteries charger with 220Vac 50Hz or cigarette lighter adapter |
220Vac, 20W photoltaic panel, 12Vdc (other on request)
12Vdc Backup battery and recharger included |
| Batteries authonomy |
About 12h with max storage every 5' |
>10days without insolation |
| Data storage |
On 2GB removable SD Card |
| HMI |
4 rows display and 4 multi-function keys |
2 rows 40 crt. display and 3 multi-function keys |
| Data transmission |
None
|
wireless: GPRS with FTP transmission
wired: Lan/Ethernet or RS485
|
MULTIPARAMETRIC PROBES
| Model |
SMx
|
mSMx
|
| Probe diameter |
ø70mm |
ø42mm |
| Detectable measurements |
|
|
| 1) Temperature (-5…+55 °C): |
X |
X |
| 2) pH (-2…16 pH): |
X |
X |
| 3) Conductivity (0…6S autorange or 0…60S): |
X |
X |
| 4) Level (0…20m or 0…350m on request (vers.SMP)): |
X |
X |
| 5) Redox (±1.000,0 mV): |
X |
option |
| 6) Dissolved oxygen (0…20ppm, mg/l, 0…200% or 0...30ppm optical version): |
X
|
/ |
| 7) Turbidity (0…4.000 NTU) |
option |
/ |
| Working pressure |
3bar with the following sensors: Level, Temperature, Conductivity, pH, Redox, Dissolved Oxygen
30 bar (available option with SMPx model)
|
| Power and consumption |
9…14Vdc (typical 12Vdc / 30mA max) |
| Output |
Serial RS485 (option RS232 converter) with proprietary protocol for Geoves dataloggers
or standard MODBUS protocol for other manufacturer dataloggers |
| Cable |
30m self-standing with vented pipe for the atmospheric pressure compensation (other lenght on request) |
| Materials |
PVC
|
| Model |
CTD Water probe for Conductivity-Temperature-Depth measurements
|
|
Parameter
|
Standard Range (other on request) |
Accuracy |
Resolution |
|
Pt1000 Temperature:
|
0…50 °C (compensated) |
0,1 °C |
<0,01 °C |
|
6 electr. conductivity:
|
0.2, 2, 20 or 200 mS/cm f.s. (selectable by sw) |
2,5% f.s. |
≤0,05% f.s. |
|
Water depth:
|
0…3bar |
0,05 %FS max. |
≤0,0005 %FS |
| |
 |
| Max working pressure |
30bar (about 300m of water column) |
| Working temperature |
-10…80 °C |
| Power supply and consumption |
6…32Vdc (typ. 12Vdc 15mA) |
| Output interfacing |
Serial RS485 port |
| Cable |
Shielded self-supporting with barometric compensation tube (please note: the end of the tube must remain outside the water; therefore, the submerged use limit of the probe depends on the length of the cable) |
| Connector |
IP68 plug |
| Materials |
Container: 316L stainless steel (DIN 1.4435), O-ring: Viton®
Cable: Polyethylene (PE)
Conductivity Sensor: Polyetheretherketone (PEEK) container; platinum electrodes |
| Dimensions |
ø22 x 240mm |
| Weight |
150g (cable excluded) |
